Gitlab CI for Automated Environment Preservation

Overview

Teaching: 20 min
Exercises: 25 min
Questions

  • How can gitlab CI and docker work together to automatically preserve my analysis environment?

  • What do I need to add to my gitlab repo(s) to enable this automated environment preservation?

Objectives

  • Learn how to write a Dockerfile to containerize your analysis code and environment.

  • Understand what needs to be added to your .gitlab-ci.yml file to keep the containerized environment continuously up to date for your repo.

Introduction

In this section, we learn how to combine the forces of docker and gitlab CI to automatically keep your analysis environment up-to-date. This is accomplished by adding an extra stage to the CI pipeline for each analysis repo, which builds a container image that includes all aspects of the environment needed to run the code.

We will be doing this using the CMS OpenData HTauTau Analysis Payload. Specifically, we will be using two “snapshots” of this code which are the repositories described on the setup page of this training. A walkthrough of how to setup those repositories can also be found on this video. The “snapshot” repositories are available on GitHub (skimmer repository and statistics repository ). If you don’t already have this setup, take a detour now and watch that video and revisit the setup page.

Writing your Dockerfile

The goal of automated environment preservation is to create a docker image that you can immediately start executing your analysis code inside upon startup. Let’s review the needed components for this.

As we’ve seen, all these components can be encoded in a Dockerfile. So the first step to set up automated image building is to add a Dockerfile to the repo specifying these components.

The rootproject/root docker image

In this tutorial, we build our analysis environments on top of the rootproject/root base image (link to project area on docker hub) with conda. This image comes with root 6.22 and python 3.8 pre-installed. It also comes with XrootD for downloading files from eos. The rootproject/root is itself built with a Dockerfile, which uses conda to install root and python on top of another base image (condaforge/miniforge3).

Exercise (15 min)

Working from your bash shell, cd into the top level of the repo you use for skimming, that being the “event selection” snapshot of the CMS HTauTau analysis payload. Create an empty file named Dockerfile.

touch Dockerfile

Now open the Dockerfile with a text editor and, starting with the following skeleton, fill in the FIXMEs to make a Dockerfile that fully specifies your analysis environment in this repo.

# Start from the rootproject/root:6.22.06-conda base image
[FIXME]

# Put the current repo (the one in which this Dockerfile resides) in the /analysis/skim directory
# Note that this directory is created on the fly and does not need to reside in the repo already
[FIXME]

# Make /analysis/skim the default working directory (again, it will create the directory if it doesn't already exist)
[FIXME]

# Compile an executable named 'skim' from the skim.cxx source file
RUN echo ">>> Compile skimming executable ..." &&  \
    COMPILER=[FIXME] && \
    FLAGS=[FIXME] && \
    [FIXME]

Hint: have a look at skim.sh if you are unsure about how to complete the last RUN statement!

Solution

# Start from the rootproject/root base image with conda
FROM rootproject/root:6.22.06-conda

# Put the current repo (the one in which this Dockerfile resides) in the /analysis/skim directory
# Note that this directory is created on the fly and does not need to reside in the repo already
COPY . /analysis/skim

# Make /analysis/skim the default working directory (again, it will create the directory if it doesn't already exist)
WORKDIR /analysis/skim

# Compile an executable named 'skim' from the skim.cxx source file
RUN echo ">>> Compile skimming executable ..." &&  \
COMPILER=$(root-config --cxx) &&  \
FLAGS=$(root-config --cflags --libs) &&  \
$COMPILER -g -std=c++11 -O3 -Wall -Wextra -Wpedantic -o skim skim.cxx $FLAGS

Once you’re happy with your Dockerfile, you can commit it to your repo and push it to github.

Hints

As you’re working, you can test whether the Dockerfile builds successfully using the docker build command. Eg.

docker build -t payload_analysis .

When your image builds successfully, you can run it and poke around to make sure it’s set up exactly as you want, and that you can successfully run the executable you built:

docker run -it --rm payload_analysis /bin/bash

Add docker building to your gitlab CI

Now, you can proceed with updating your .gitlab-ci.yml to actually build the container during the CI/CD pipeline and store it in the gitlab registry. You can later pull it from the gitlab registry just as you would any other container, but in this case using your CERN credentials.

Not from CERN?

If you do not have a CERN computing account with access to gitlab.cern.ch, then everything discussed here is also available on gitlab.com, which offers CI/CD tools, including the docker builder. Furthermore, you can achieve the same with GitHub + Github Container Registry. To learn more about these methods, see the next subsections.

Add the following lines at the end of the .gitlab-ci.yml file to build the image with Kaniko and save it to the docker registry. For more details about building docker images on CERN’s GitLab, see the Building docker images docs page.

build_image:
  stage: build
  variables:
    IMAGE_DESTINATION: $CI_REGISTRY_IMAGE:$CI_COMMIT_REF_SLUG-$CI_COMMIT_SHORT_SHA
  image:
    # The kaniko debug image is recommended because it has a shell, and a shell is required for an image to be used with GitLab CI/CD.
    name: gcr.io/kaniko-project/executor:debug
    entrypoint: [""]
  script:
    # Prepare Kaniko configuration file
    - echo "{\"auths\":{\"$CI_REGISTRY\":{\"username\":\"$CI_REGISTRY_USER\",\"password\":\"$CI_REGISTRY_PASSWORD\"}}}" > /kaniko/.docker/config.json
    # Build and push the image from the Dockerfile at the root of the project.
    - /kaniko/executor --context $CI_PROJECT_DIR --dockerfile $CI_PROJECT_DIR/Dockerfile --destination $IMAGE_DESTINATION
    # Print the full registry path of the pushed image
    - echo "Image pushed successfully to ${IMAGE_DESTINATION}"

Once this is done, you can commit and push the updated .gitlab-ci.yml file to your gitlab repo and check to make sure the pipeline passed. If it passed, the repo image built by the pipeline should now be stored on the docker registry, and be accessible as follows:

docker login gitlab-registry.cern.ch
docker pull gitlab-registry.cern.ch/[repo owner's username]/[skimming repo name]:[branch name]-[shortened commit SHA]

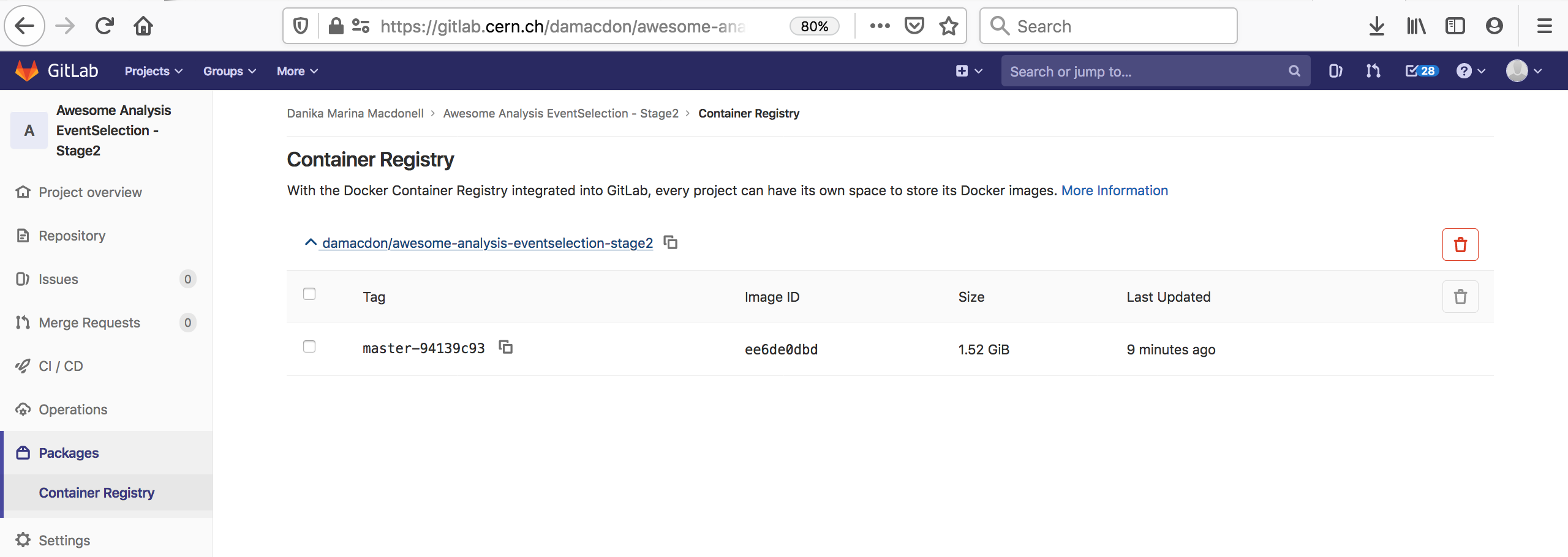

You can also go to the container registry on the gitlab UI to see all the images you’ve built:

ContainerRegistry

Notice that the script to run is just a dummy ‘ignore’ command. This is because using the docker-image-build tag, the jobs always land on special runners that are managed by CERN IT which run a custom script in the background. You can safely ignore the details.

You’ll notice the environment variable IMAGE_DESTINATION in the .gitlab-ci.yml script above. This controls the name of the Docker image that is produced in the CI step. Here, the image name will be <reponame>:<branch or tagname>-<short commit SHA>. The shortened 8-character commit SHA ensures that each image created from a different commit will be unique, and you can easily go back and find images from previous commits for debugging, etc.

As you’ll see tomorrow, it’s recommended when using your images as part of a REANA workflow to make a unique image for each gitlab commit, because REANA will only attempt to update an image that it’s already pulled if it sees that there’s a new tag associated with the image.

If you feel it’s overkill for your specific use case to save a unique image for every commit, the -$CI_COMMIT_SHORT_SHA can be removed. Then the $CI_COMMIT_REF_SLUG will at least ensure that images built from different branches will not overwrite each other, and tagged commits will correspond to tagged images.

Alternative: GitLab.com

This training module is rather CERN-centric and assumes you have a CERN computing account with access to gitlab.cern.ch. If this is not the case, then as with the CICD training module, everything can be carried out using gitlab.com with a few slight modifications. In particular, you will have to specify that your pipeline job that builds the image is executed on a special type of runner with the appropriate services. However, unlike at CERN, you can use the docker commands that you have seen in the previous episodes to build and push the docker images.

Add the following lines at the end of the .gitlab-ci.yml file to build the image and save it to the docker registry.

build_image:
  stage: build
  image: docker:latest
  services:
    - docker:dind
  variables:
    IMAGE_DESTINATION: $CI_REGISTRY_IMAGE:$CI_COMMIT_REF_SLUG-$CI_COMMIT_SHORT_SHA
  script:
    - docker build -t $IMAGE_DESTINATION .
    - docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY
    - docker push $IMAGE_DESTINATION

In this job, the specific image: docker:latest, along with specifying the services to contain docker:dind are needed to be able to execute docker commands. If you are curious to read about this in detail, refer to the official gitlab documentation or this example.

In the script of this job there are three components :

If the job runs successfully, then in the same way as described for gitlab.cern.ch in the previous section, you will be able to find the Container Registry on the left hand icon menu of your gitlab.com web browser and navigate to the image that was pushed to the registry. Et voila, c’est fini, exactement comme au CERN!

Alternative: GitHub.com

You can also build Docker images on github.com and push them to the GitHub Container Registry (ghcr.io) with the help of GitHub Actions. The bonus episode Building and deploying a Docker container to Github Packages explains how to do so.

An updated version of skim.sh

Exercise (10 mins)

Since we’re now taking care of building the skimming executable during image building, let’s make an updated version of skim.sh that excludes the step of building the skim executable.

The updated script should just directly run the pre-existing skim executable on the input samples. You could call it eg. skim_prebuilt.sh. We’ll be using this updated script in an exercise later on in which we’ll be going through the full analysis in containers launched from the images we create with gitlab CI.

Once you’re happy with the script, you can commit and push it to the repo.

Solution

#!/bin/bash

INPUT_DIR=$1
OUTPUT_DIR=$2

# Sanitize input path, XRootD breaks if we double accidentally a slash
if [ "${INPUT_DIR: -1}" = "/" ];
then
INPUT_DIR=${INPUT_DIR::-1}
fi

# Skim samples
while IFS=, read -r SAMPLE XSEC
do
echo ">>> Skim sample ${SAMPLE}"
INPUT=${INPUT_DIR}/${SAMPLE}.root
OUTPUT=${OUTPUT_DIR}/${SAMPLE}Skim.root
LUMI=11467.0 # Integrated luminosity of the unscaled dataset
SCALE=0.1 # Same fraction as used to down-size the analysis
./skim $INPUT $OUTPUT $XSEC $LUMI $SCALE
done < skim.csv

Key Points

  • gitlab CI allows you to re-build a container that encapsulates the environment each time new commits are pushed to the analysis repo.

  • This functionality is enabled by adding a Dockerfile to your repo that specifies how to build the environment, and an image-building stage to the .gitlab-ci.yml file.
